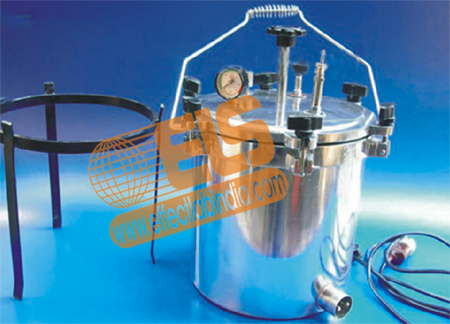

Made of entire aluminum of die press drum of heavy gauge to with stand of hydraulic pressure 40-50 per square inch . The drum having six fly nut knobs along with nuprine rubber gasket to avoid leakage of pressure. The lid is fitted with pressure gauge, safety valve and steam releasing cock. A extra safety valve is also provided. The autoclave is fitted with immersion heating element for electrical operation. The autoclave supplied with tripod stand, handle plug and cord and also inner basket. Size (Approx.) Dia. 350 mm Height 300mm.

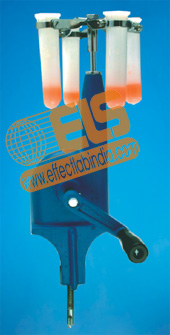

Hand operated with metal head, Powdered Paint, Die cast aluminum body, removable crank handle and fixing clamp of maximum capacity 50 mm. approx. The apparatus may be set up and re-stored with ease and rapidly by virtue of the simple pin connection for the head and crank. Complete with buckets (and cups) for ml. tubes. Packed in Styrofoam Box.
Dome type aluminium sheet body with lid, fitted with resiliently mounted motor for vibration free performance, with swing out rotor heads of 15ml tubes capacity and a 5 step speed regulator, supplied with tubes and lead with plug. Operates on 220 Volts A.C. Supply.

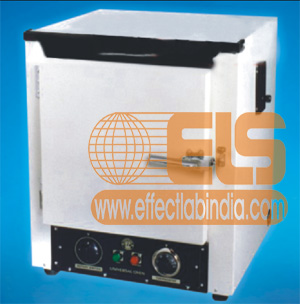

Standard double wall fabrication. Inner chamber made of heavy gauge richly anodized aluminum. Exterior fabricated out of thick mild steel sheet duly finished powder coated .
The gap between the walls is filled with-special grade glass-wool for heat insulation. Inner chamber is ribbed for placing shelves at convenient levels. Provided with two or three removable shelves. Special elegant door closing device has been provided.
Nichrome wire heating elements -provided on three sides attain quick and uniform heating in range of 50°C to 250°C ± 1°C controlled by capillary type thermostat.
L-shaped thermometer is built-in type. Control panel is provided with selector switch of high or low rates of power, thermostat control knob and indicators for mains & thermostat. Supplied with cord and plug. The equipment is suitable to operate on 220 V AC 50 Hz single phase.
Cat. No.
Chamber Size (mm)
A
 300 x 300 x 300 Â
B
275 x 400 x 275
C
350 x 350 x 350
D
400 x 400 x 400
E
450 x 450 x 450
F
600 x 450 x 450
G
600 x 600 x 600
H
600 x 600 x 600
I
900 x 600 x 600
J
900 x 900 x 900
Note the above oven sizes can also be provided with stainless steel chamber on special request. Â

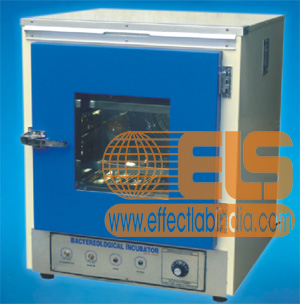

Standard double wall fabrication. Inner chamber made out of richly anodized aluminium or highly polished stainless steel sheet and Exterior fabricated out of thick mild steel sheet duly finished powder coated.
The gap is filled with special glass wool for temp. insulation. Double wall door with double window for observation in the chamber. Temperature range 5°C above ambient to 80°C + 2°C controlled by a thermostat. L-shaped thermometer is provided for taking temp. readings. Panel is provided with pilot lamps for mains & heaters, On-off switch, temp. Control knob etc. The equipment is workable on 220 V AC 50 Hz single phase. Heating is achieved from 3 sides. Perforated removable shelves also provided
Body in made of one-piece aluminium and is logged with special mineral wool. The panel is provided with on-off switch, energy control knob, pilot lamp etc. Provided with jointless hand knitted heating nets of glass yarn capable of withstanding high temperature upto 400°C. Single supplied complete with cord & plug to work on 220 V AC 50 Hz single phase. Single circuit system has been adopted.

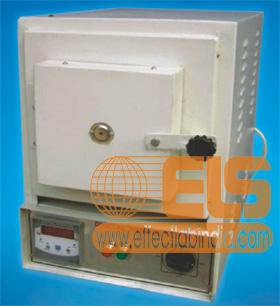

Furnace Outer shell made out of thick mild steel duly finished in powder coated paint. Fitted with grooved refractory for supporting the heating elements made out of kanthal wire and are easily replaceable. Maximum temp. 1150°C with working temp. 1100°C controlled by Microprocessor PID Digital temp. Indicator- Cum- Controller.
Cat. No.
Chamber (mm)
A
225x100x100
B
250x125x125
C
300x150x150
D
300x200x200
Note :- 1400°C Muffle Furnace can be offered on demand.

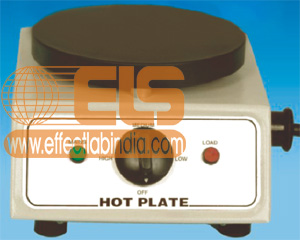

Used for fast heating, cast iron top and painted thick mild steel base fitted with rubber feet, heating by element beneath the round plate. Front panel provided with three heat control switch or energy regulator, mains indicator lamp. Diameter of plate 200 mm. Supplied complete with 1.5 meter three core cable to work on 220V 50 Hz AC.

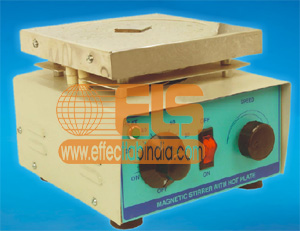

Compact stirring device simulating continuous both heating and stirring. The Stirrer utilizing a rotating magnetic field applied from below the container. The stirring is accomplished by a Teflon rotor placed in the liquid to be stirred. Complete with pilot lamp, plug cord, continuously variable speed regulator The body is made of mild steel duly finished in powder coat and mounted with a stainless steel top which serves as a hot plate. Stirring and heating units are properly insulated. Temp. is controlled by an energy regulator and an electronic speed controller is also provided. Speed range 50-1300 R.P.M and maximum attainable temp. Is 350°C. The equipment works on 220V AC 50 HZ single phase.

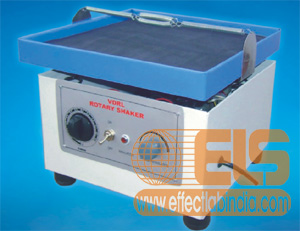

Suitable for VDRL and other agglutination tests, blood grouping tests and for mixing of solutions in small flasks, beakers or bottles. Body made of sturdy mild steel sheet duly finished in powder coat. Tray type platform size 300x300 mm can take cavity slides, bottles, flasks etc. for shaking at a fixed speed, by the help of spring wires. Standard fixed speed 180 RPM An automatic 60 minutes timer can be provided against extra cost as optional by which shaking duration can be set. To work on 220V AC 50 Hz single phase.
