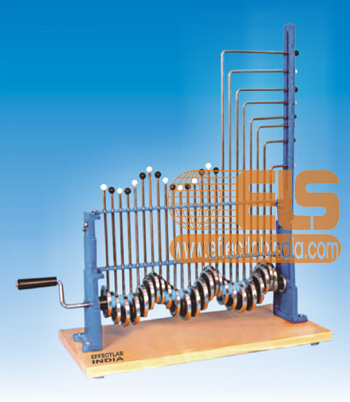

For demonstrating both longitudinal and transverse motions, comprising a number of eccentric discs supporting a series of metal rods. Transverse waves are obtained on revolving the handle, longitudinal waves obtained with bent rods running in a metal guide and fitted on polished wooden base.

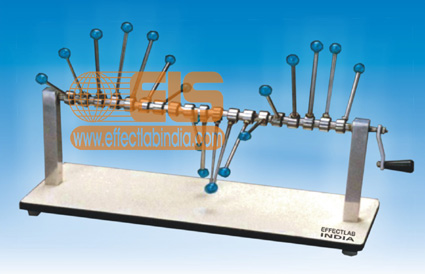

Consist of nineteen spheres of 10 mm diameter mounted on steel rod of length 75 mm with collar for attachment to a horizontal 300 mm shaft which rotates in two metal pillars mounted on a wooden base. Movement can be observed by rotating the handle

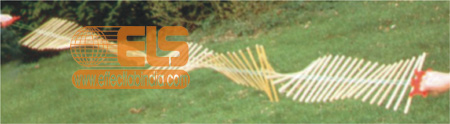

An inexpensive kit to demonstrate the theory of waves. Comprises one large demonstration transverse wave machine, which consists of 80 arms spaced on a nylon line. The transverse wave machine provides an example of transverse wave propagation in which the movements of the rods create the waves. This can also be used to show the superimposition of waves, amplitude and decay, stationary waves, modes and harmonics, reflection and transmission. The waves are actuated by hand. The loaded elastic cords can be used to illustrate transverse wave motion and for comparing the effects of different wave parameters such as the average mass per unit length, cell size and tension..

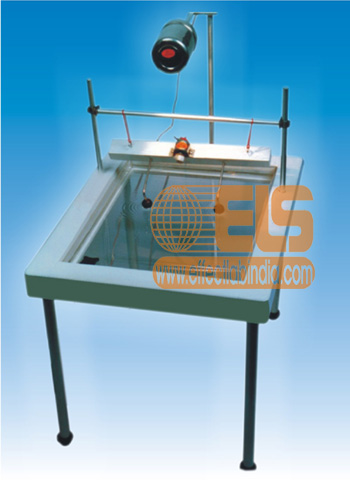

The ripple tank is a device to illustrate the laws which govern all wave phenomenon using ripples on the surface of water as the prototypes of all transverse waves. Ripple tank illustrates important wave motions like rectilinear and circular. It can also demonstrate refraction, diffraction and interference of water waves. The apparatus consists of a framed tray with a plexi glass base and detachable legs. A pair of support rods with clamps is provided which can be attached to the sides of the tank and used to carry the wave generating system. The ripples are produced by a small 1.5 to 4.5V D.C. electric motor mounted at the centre of a wooden wave generator bar with a row of holes to mount the spherical dippers supplied. It is recommended that the power supply unit is used as this has been specially designed for use with the ripple tank. It has continuously variable D.C.. output so that the speed of the motor and hence the frequency of the ripples may be varied. One white card sheet may be placed on the floor underneath the tank as a screen to receive the wave pattern shadows. Tank can be used with an overhead projector. Size of the tank 500 mm x 500mm (Approx.)
The full set of Apparatus comprises of :-
Aluminum Frame 1 Transparent Tray.
4 Legs with levelling screw. Â
1 Motor Vibrator.
1 Glass Object.1 Dropper
6 Suspension Bands.

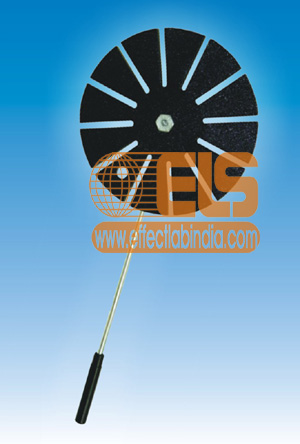

1 Stroboscope.
1 Rod with hanging hooks.
1 Sponge for cleaning.
1 'C' clamp - 170 x 25 mm.
1 Hollow plastic pipe.
'S' blocks & rods for support.
1 Projection Mirror
Light source provided with Halogen Lamp.
1 Almunium 'L' bend - 45 x 25 mm.
1 Almunium 'L' bend - 75 x 25 mm.
2 Spherical dippers attached with Motor Rod.
Supplied without power supply and stroboscope
